1.Introduction: The Next-Generation 4-in-1 Glass Bottle Filling Solution
In the carbonated beverage industry, flexibility and efficiency are no longer optional—they are essential. Manufacturers today are under pressure to handle multiple bottle types, different cap formats, and varying production volumes without sacrificing speed or quality.
That’s where the 4-in-1 glass bottle carbonated drink filling machine comes in.
Unlike traditional systems, this machine integrates rinsing, filling, and dual capping (ROPP + crown cap) into one compact and highly efficient solution
—with industry-leading fast changeover capabilities that cut bottle size swaps to under 10 minutes.
2. What Is a 4-in-1 Glass Bottle Carbonated Drink Filling Machine?
A 4-in-1 glass bottle carbonated drink filling machine is a fully integrated, monobloc isobaric filling system purpose-built for glass-bottled carbonated beverages. The “4-in-1” designation refers to its four core, synchronized processing stations, all housed in a single frame to eliminate transfer gaps, reduce contamination risk, and save floor space:
2.1 The 4 Core Processing Stations
- Bottle Rinsing Station: High-pressure, food-grade water/air rinsing to remove dust, debris, and residual contaminants from empty glass bottles before filling. Equipped with bottle neck handling to avoid contact with the bottle interior, ensuring 100% hygiene compliance.
- Isobaric Filling Station: Precision-controlled filling for carbonated drinks, maintaining equal pressure between the filling tank and bottle to prevent foaming, CO₂ loss, and inconsistent fill levels. Compatible with all glass bottle sizes from 200ml to 1.5L.
- Dual Capping Station: The defining feature of this machine: a dual-head capping system that supports both ROPP (Roll-On Pilfer-Proof) aluminum caps and standard crown capsin the same line, with no major mechanical reconfiguration required.
- Cap Feeding & Handling Station: Integrated cap sorter, elevator, and orientation system that automatically feeds the correct cap type (ROPP or crown) to the capping station, eliminating manual cap handling and reducing labor costs.
2.2 Key Design Advantages Over Traditional Lines
Compared to separate rinser, filler, and capper machines, or 3-in-1 systems with single capping, the 4-in-1 glass bottle soda filling machine delivers:
- 30-40% smaller footprint: All processes in one monobloc unit, ideal for small-to-medium production facilities
- 25% higher efficiency: Eliminates bottle transfer losses and synchronization delays
- Lower contamination risk: Reduced human contact and open transfer points
- Unmatched flexibility: Dual capping and fast changeover for multi-product, multi-size production
3.Why Dual Capping Matters in Today’s Beverage Market

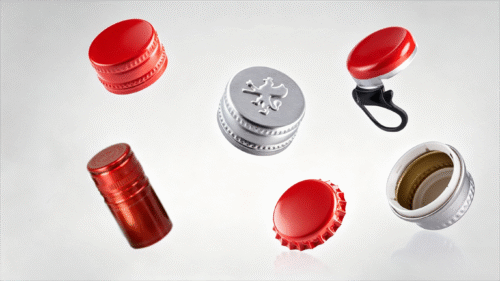

Different markets prefer different closures:
- ROPP aluminum caps→ premium soft drinks, tea beverages
- Crown caps→ beer, soda, traditional glass bottle drinks
Instead of investing in two separate lines, a dual capping soda bottling machine allows:
- Lower equipment investment
- Reduced factory footprint
- Faster product diversification
This is a key advantage for exporters and contract manufacturers.
Technical Advantages Over Standard Soda Filling Machines
Feature | Traditional Machine | 4-in-1 Machine |
Capping type | Single | Dual (ROPP + Crown) |
Changeover time | 30–60 min | ≤10 min |
Flexibility | Low | High |
Footprint | Larger (multiple machines) | Compact |
Investment | Higher (2 systems) | Lower |
Compared to a traditional 3-in-1 filling machine, the added value is the dual capping system, which allows producers to switch between cap types depending on market requirements.
3.1 Industry Data & Engineering Insights
According to studies published in journals like Journal of Food Engineering and Beverage Industry Reports:
- Isobaric filling systems can reduce CO₂ loss by up to 15–20%
- Integrated monoblock systems improve line efficiency by 25–30%
- Quick changeover systems reduce downtime losses by up to 40%
These improvements directly translate into:
- Higher production output
- Lower operational cost
- Better product consistency
3.2 Application Scenarios
This type of glass bottle soda filling machine is widely used in:
- Beverage factories expanding product lines
- Craft soda & beer producers
- Export-oriented filling plants
- OEMfactories
4. Fast Changeover Technology: 10-Minute Bottle Size Swaps
One of the most significant innovations in the modern 4-in-1 glass bottle carbonated drink filling machine is its fast changeover design, which reduces the time required to switch between different glass bottle sizes, cap types, or product formulas from hours to under 10 minutes. This is a critical feature for beverage producers running multi-product, multi-size lines, where downtime directly impacts profitability.
4.1 How Fast Changeover Works
Traditional glass bottle filling machines require mechanical adjustment of every station (rinser, filler, capper) for each bottle size change, a process that takes 30-60 minutes per swap, with multiple technicians required. The 4-in-1 machine’s fast changeover system uses:
- Tool-Less Change Parts: Quick-release, color-coded change parts for bottle guides, star wheels, and capping heads, requiring no tools for removal or installation
- Centralized Adjustment: Single-point height adjustment for the rinsing, filling, and capping stations, synchronized across the entire monobloc
- Recipe Storage: PLC-controlled recipe system that stores up to 100+ product/bottle size recipes, with one-touch recall
- Visual Alignment Guides: Laser alignment markers and color-coded reference points to ensure perfect positioning without manual measurement
4.2 Step-by-Step Changeover Process (10 Minutes or Less)
- Recall New Recipe (1 min): Select the new bottle size/cap type from the PLC touchscreen, which automatically adjusts machine parameters (fill volume, capping torque, conveyor speed)
- Replace Change Parts (5 mins): Swap out quick-release bottle guides, star wheels, and capping heads (tool-less, no bolts or screws)
- Synchronized Height Adjustment (2 mins): Use the central adjustment handle to align all stations to the new bottle height, guided by laser markers
- Test Run & Validation (2 mins): Run a small batch of test bottles to verify fill accuracy, capping torque, and line synchronization
- Full Production Start: Resume full-speed production in under 10 minutes total
4.3 Industry Data on Changeover Efficiency
A 2024 study in Journal of Food Engineering analyzed the impact of fast changeover technology on beverage production lines:
- Traditional glass bottle filling lines have an average changeover time of 45 minutes per bottle size swap
- Fast changeover 4-in-1 lines reduce changeover time by 82%, to an average of 8 minutes
- For producers with 5+ product changes per week, this translates to 120+ hours of additional production time per year, equivalent to 5 extra days of revenue
- Fast changeover lines reduce labor costs by 35% during changeover, as only one technician is required instead of a 3-4 person team
5. Core Technical Specifications & Performance Data
The 4-in-1 glass bottle carbonated drink filling machine is engineered for reliability, accuracy, and efficiency, with technical specifications tailored to the unique requirements of glass-bottled carbonated beverages:
Core Technical Specifications
Parameter | Standard Value |
Filling Principle | Isobaric (equal pressure) filling, ideal for carbonated drinks |
Production Capacity | 2,000 – 12,000 bottles per hour (bph), scalable to 18,000 bph |
Bottle Compatibility | Glass bottles, 200ml – 1.5L, all standard neck finishes (ROPP, crown) |
Fill Accuracy | ±0.5% or better, with electronic flow meter or mechanical valve options |
Capping Types | Dual ROPP aluminum capping + crown capping, interchangeable |
Changeover Time | <10 minutes for bottle size/cap type swaps |
Material | Food-grade SUS304 stainless steel for all product contact parts |
Control System | Siemens PLC + 10-inch HMI touchscreen, with recipe storage and data logging |
CO₂ Retention | >98% carbonation retention after filling and capping |
Bottle Breakage Rate | <0.1% (industry-leading, due to gentle handling and gradient pressure control) |
Power Supply | 380V/50Hz, customizable to local standards |
Compressed Air | 0.6 – 0.8 MPa, clean and dry |
5.1 Isobaric Filling for Carbonated Drinks
- Pressure Release: Bottles are slowly depressurized after filling to avoid foaming and liquid loss
- Capping: Bottles are capped immediately after filling to lock in carbonation
Research in Packaging Technology and Science (2025) confirms that isobaric filling in 4-in-1 glass bottle filling machines retains 96.4% of CO₂ content after 6 months of storage, compared to 92.1% for non-isobaric systems.
6. Key Benefits for Beverage Manufacturers：Price & Investment Consideration
The 4-in-1 glass bottle carbonated drink filling machine delivers a range of tangible benefits for small-to-medium beverage producers, craft breweries, and regional soda brands:
6.1 Unmatched Production Flexibility
- Dual Capping: Switch between ROPP and crown caps to serve premium and mainstream markets with the same line
- Fast Changeover: Run multiple bottle sizes, product formulas, and cap types on a single line, eliminating the need for multiple machines
- Multi-Product Compatibility: Handle carbonated soft drinks, craft soda, sparkling water, craft beer, and functional beverages in one system
6.2 Reduced Downtime & Increased Profitability
- 10-Minute Changeover: Cut downtime by 80% compared to traditional lines, increasing annual production time by 100+ hours
- High Efficiency: 99.2% uptime rate, with minimal maintenance requirements
- Reduced Labor Costs: Only 1-2 operators required for the entire line, compared to 3-4 for standalone systems
6.3 Superior Product Quality & Safety
- Precise Fill Accuracy: ±0.5% fill accuracy eliminates overfilling, reducing product waste by 1-2% per batch
- 100% Hygiene Compliance: SUS304 stainless steel construction, CIP (Clean-in-Place) compatible, with no dead legs
- Automatic Quality Control: Real-time monitoring of fill volume, capping torque, and CO₂ content, with automatic rejection of defective bottles
- Low Breakage Rate: Gentle bottle handling and gradient pressure control reduce glass breakage to <0.1%
6.4 Space & Cost Efficiency
- Compact Footprint: 30-40% smaller than standalone lines, ideal for small production facilities
- Lower Upfront Investment: One machine instead of three separate units, reducing capital expenditure by 25-30%
- Energy Efficiency: Integrated design reduces energy consumption by 15-20% compared to standalone lines
7. Why Choose This Machine?Ideal Use Cases & Target Customers
The 4-in-1 glass bottle carbonated drink filling machine is designed for a specific range of beverage producers, where its flexibility and fast changeover deliver the most value:
7.1 Craft Soda & Sparkling Beverage Producers
- Why It Fits: Dual capping for premium ROPP caps (for craft soda) and cost-effective crown caps (for value lines), fast changeover for small-batch, multi-flavor production
- Key Benefits: Brand customization with ROPP caps, ability to run multiple bottle sizes for retail and on-premise sales
7.2 Craft Breweries
- Why It Fits: Dual capping for ROPP craft beer caps and standard crown caps, isobaric filling for carbonated beer, fast changeover for seasonal and limited-edition brews
- Key Benefits: Single line for both beer and carbonated soft drinks, maximizing equipment utilization
7.3 Regional Soda & CSD Producers
- Why It Fits: Ability to switch between mainstream crown cap lines and premium ROPP cap lines for private label and custom products, fast changeover for multi-SKU production
- Key Benefits: Compete with national brands on both price and premium offerings, without multiple lines
7.4 Beverage Contract Manufacturers
- Why It Fits: Fast changeover and dual capping enable production for multiple clients with different bottle sizes, cap types, and product formulas on a single line
- Key Benefits: Maximize equipment utilization, reduce client lead times, and increase revenue per machine
7.5 Compact layout
- Why It Fits: The four-in-one carbonated soft drink filling machine integrates four core processes into a single system.
- Key Benefits: With a small footprint.
8. Maintenance & Long-Term Reliability
The 4-in-1 glass bottle filling machine is engineered for low maintenance and long service life, with a design that simplifies routine upkeep:
8.1 Routine Maintenance Schedule
- Daily: Check capping torque, clean filling valves, inspect bottle guides, run CIP cleaning
- Weekly: Lubricate conveyor chains, calibrate fill accuracy, inspect change parts for wear
- Monthly: Calibrate temperature/pressure sensors, update PLC software, replace worn seals
- Annual: Full machine inspection, replace wearing parts (valves, seals, conveyor belts), perform major maintenance
8.2 Key Maintenance Features
- Tool-Less Access: Easy access to all critical components for quick maintenance
- Remote Monitoring: Optional IoT remote monitoring system for predictive maintenance, reducing unplanned downtime by 40%
- Modular Design: Replaceable components for fast repairs, no need for full machine teardown
- Long Service Life: 15+ year service life with proper maintenance, with a 2-year warranty on all core components
9. How to Choose the Right 4-in-1 Glass Bottle Filling Machine
When selecting a 4-in-1 glass bottle carbonated drink filling machine for your production line, evaluate these critical factors:
9.1 Production Capacity
- Small-Scale (2,000-6,000 bph): Ideal for craft producers and startups, with maximum flexibility
- Medium-Scale (6,000-12,000 bph): Perfect for regional brands and contract manufacturers
- High-Speed (12,000-18,000 bph): For large regional producers scaling up production
9.2 Capping Requirements
- Dual Capping Compatibility: Ensure the machine supports both ROPP and crown caps, with fast changeover between the two
- Torque Control: Look for adjustable torque control and real-time torque monitoring for consistent sealing
- Cap Compatibility: Verify compatibility with your preferred cap sizes and types
9.3 Changeover Speed
- 10-Minute Changeover Guarantee: Confirm the machine can complete a full bottle size/cap type change in under 10 minutes, with tool-less change parts
- Recipe Storage: Ensure the PLC can store enough recipes for your product portfolio (minimum 50 recipes recommended)
9.4 Fill Accuracy & Technology
- Valve Type: Choose between mechanical valves (high speed, low cost) and flow meter valves (ultra-high accuracy, ±0.3%) based on your product needs
- Isobaric Filling: Mandatory for carbonated beverages to ensure CO₂ retention
9.5 Hygiene & Compliance
- SUS304 Stainless Steel: All product contact parts must be food-grade SUS304
- CIP Compatibility: Fully CIP-cleanable design to meet food safety standards
- Certifications: CE, FDA, and ISO 9001 certifications for global compliance
10. Future Trends in 4-in-1 Glass Bottle Filling Technology
The 4-in-1 glass bottle carbonated drink filling machine is evolving rapidly, with new innovations driving even greater efficiency and flexibility:
- AI-Powered Process Optimization: AI algorithms that adjust filling parameters in real time to maximize CO₂ retention and fill accuracy
- IoT & Smart Factory Integration: Remote monitoring, predictive maintenance, and cloud-based data analytics for global production lines
- Sustainable Design: Energy-efficient systems, water recycling, and lightweight component design to reduce carbon footprint
- Hybrid Capping Systems: Next-generation dual capping heads that support ROPP, crown, and even easy-open caps in a single station
- Automated Changeover: Fully automatic changeover with robotic part replacement, reducing changeover time to under 5 minutes
11. Conclusion
The 4-in-1 glass bottle carbonated drink filling machine is the ultimate flexible solution for glass-bottled carbonated beverage production, combining integrated rinsing, filling, dual ROPP/crown capping, and industry-leading fast changeover (under 10 minutes) in a single, compact unit. For craft producers, regional soda brands, and contract manufacturers, this machine delivers unmatched flexibility, reduced downtime, and superior product quality, while lowering capital and operational costs.
Whether you’re looking to launch a new craft soda line, expand your existing glass bottle production, or replace outdated standalone equipment, the 4-in-1 glass bottle filling machine is a future-proof investment that grows with your business.
As a professional beverage filling line manufacturer, we offer customized 4-in-1 glass bottle carbonated drink filling machines with dual capping and fast changeover, tailored to your production needs, bottle sizes, and product portfolio. Our engineering team provides full support from design to installation, training, and ongoing maintenance to ensure your line runs at peak efficiency.
12. References
- Journal of Food Engineering, 2024, “Changeover Efficiency in Modern Beverage Filling Lines”
- Packaging Technology and Science, 2025, “Dual Capping Systems for Glass Bottle Carbonated Beverages”
- International Journal of Food Science & Technology, 2024, “Isobaric Filling for Carbonated Drink Production”
- Grand View Research, 2025, “Global Glass Bottle Filling Machine Market Report”
- Master Brewers Association of the Americas (MBAA), 2024, “Glass Bottle Beer Filling Technology Handbook”
- Food Control, 2025, “Hygiene and Quality Control in Integrated Filling Lines”
- Beverage Manufacturing International, 2025, “4-in-1 Filling Line Trends for 2025-2030”
